Equipos de Construcción TL50
Still deciding? Get samples first, Contáctenos !
View Productoos Similares
- Description
-
TE135 Excavadora
Standard Equiposs for TL50
Potenciaful engine Hydraulic joystick Standard bucket USB/radio/Mirror/Fan/fire extinguisher/hand brake Automatic with torque Converter
Adjustable steel wheel/seat
Tires/gearbox Review Camera Additional Equiposs for TL50
Standard quick hitch air conditoner Hydraulic joystick Floating function Especificaciones
Performance 1 Rated load 5000kg 2 Overall Peso 16500kg 3 Rated bucket Capacidad 3m³ 4 Maximum traction force ≥168KN 5 Maximum breakout force ≥170KN 6 Maximum grade ability 30° 7 Maximum dump height 3142mm 8 Maximum dump reach 1250mm 9 Overall Dimensión (L×W×H) 8085×2963×3463mm 10 Minimum turning radius 6732mm Engine 11 Modeloo Weichai 12 Tipo Inline,water cooling,dry
cylinder,direct injection13 No. de cylinder-bore/stroke 6-126×130mm 14 Rated Potencia 162kw--2400r/min 15 Maximum torque 890N.m 16 Min fuel-consume ratio ≤215g/kw.h TransMisión system 17 Torque converter YJ375 18 Gearbox mode Planetary Potencia shift 19 Gear shift 4 forward shift 4 reverse shift 20 Maximum speed 39km/h Drive axles 21 Main transMisión Tipo Spiral gear,first stage decelerate 22 Final decelerate Tipo First stage,planetary gear decelerate 23 Wheel base (mm) 3200mm 24 Wheel tread 2250mm 25 Minimum ground clearance 450mm Hydraulic system 26 System working pressure 18MPa 27 Boom lifting time ≤5.1s 28 Total time ≤9.3s 29 Fuel tank Capacidad 260L 30 Hydraulic tank Capacidad 300L 31 Function de leveling automatically Yes Brake system 32 Service brake Air over hydraulic disc brake on 4 wheels 33 Parking brake Manual parking brake Tyre 34 Tipo specification 23.5-25 35 Front tyre pressure 0.39±0.01 Mpa 36 Rear tyre pressure 0.33±0.01Mpa Steering system 37 Tipo Articulated load-sensing hydraulic steering system
38 Steering angle 38°each side Detailed Display
The whole system is equipped with a big brand engine with stable performance and strong Potencia.
High performance, hydraulic circuit system
The structure de the working device is optimized to avoid local stress concentration and improve working efficiency.
Equipped with a built-in gauge for easy observation de hydraulic oil level. Ensures quick and accurate assessment to optimize performance.
Optional Accessories
Packaging for shipment
Customer Visits
Client Testimonials
Equipos de Construcción TL50
Still deciding? Get samples first, Contáctenos !
Productooos Category
Certificaciones
FAQs
Where is your Fábrica?
The Fábrica de Katz Máquinas Co. Ltd is in Qianyatou village,Mihe town,Qingzhou city,a long Historia dity with beautifulscenery and rich culture.
There are our Deicina Direcciónes also:
1:No .190-1 Wenhua WestRoad,Weihai City.
2:No .357 Songlin Road,Pudong NuevoArea,Shanghai.
3:Qianyatou Village,MiheTown,Qingzhou City.
What Certificados do you have?
Calidad MANAGEMENT SYSTEM CERTIFICATION：GB/T19001-2016/MS09001:2015

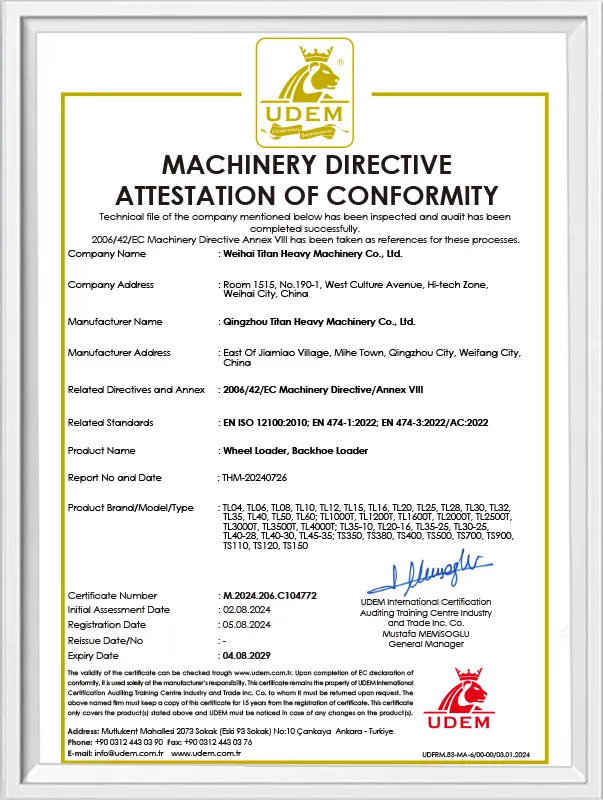

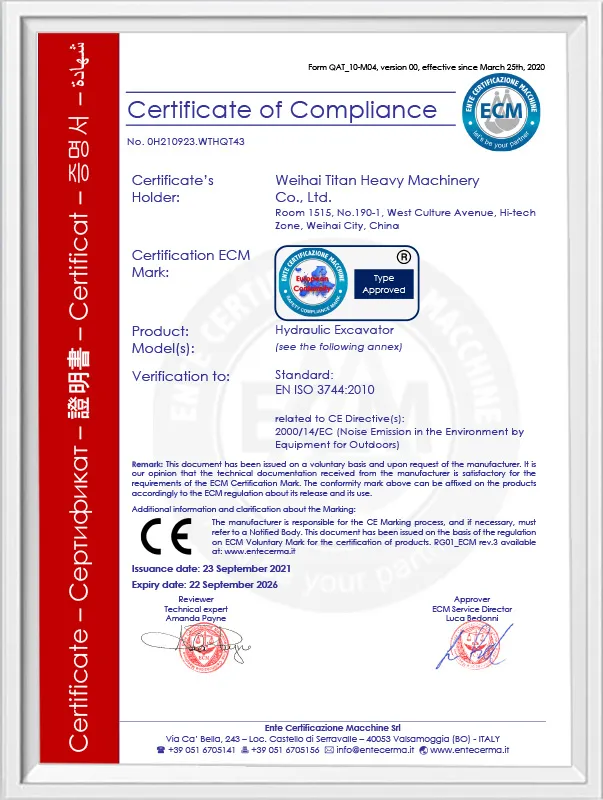

CE CERTIFICATION
NOISE TECHNICAL CONSTRUCTION FILE
MSDS FOR BATTERY
SABER CERTIFICATION
Can I get some samples?
Free sample is not available,and the minimum order quantity is one set.
Are you a Fábrica or a trading Empresa?
We are an integrated Producción and sales Empresa,and both our Producción and sales Equipos have over 21 Años de experience.
What is the MOQ de the Producto and what is the Producción lead time after ordering?
MOQ is 1,and the Producción lead time depends on the quantity de Productoos ordered and is usualy around 15-30 Días.
What are the payment options?
T/T payment is preferred,Otros payment methods are also accepted,payment Términos:30% advance payment,70% balance payment.
